Perhaps one of the most important and fundamental decisions is how to render our web application when we start architecting a new web app. That’s why today I want to talk about two ways of rendering, client-side rendering and server-side rendering.Of course, these two patterns are not the only ones, and we will discuss progressive rendering and other patters in the near future.

Terminology I will use 💬

🎨 Rendering

SSR = Server-Side Rendering — rendering a client-side or universal app to HTML on the server.
CSR = Client-Side Rendering — rendering an app in a browser, generally using the DOM.
Rehydration - booting up JavaScript views on the client such that they reuse the server-rendered HTML’s DOM tree and data.

⚡️ Performance

FP = First Paint — the first time any pixel becomes visible to the user.
FCP = First Contentful Paint — the time when requested content (article body, etc) becomes visible.
TTI = Time To Interactive — the time at which a page becomes interactive (events wired up, etc).
TTFB = Time to First Byte — the time between entering a link and the first bit of content coming in

Let’s start with CSR. In such a rendering process, we have almost the empty html, and the the builded Javascript. We are generating and building the Dom by loading this JS code into the browser.

CSR

Structure ⛩️ 🏗️:

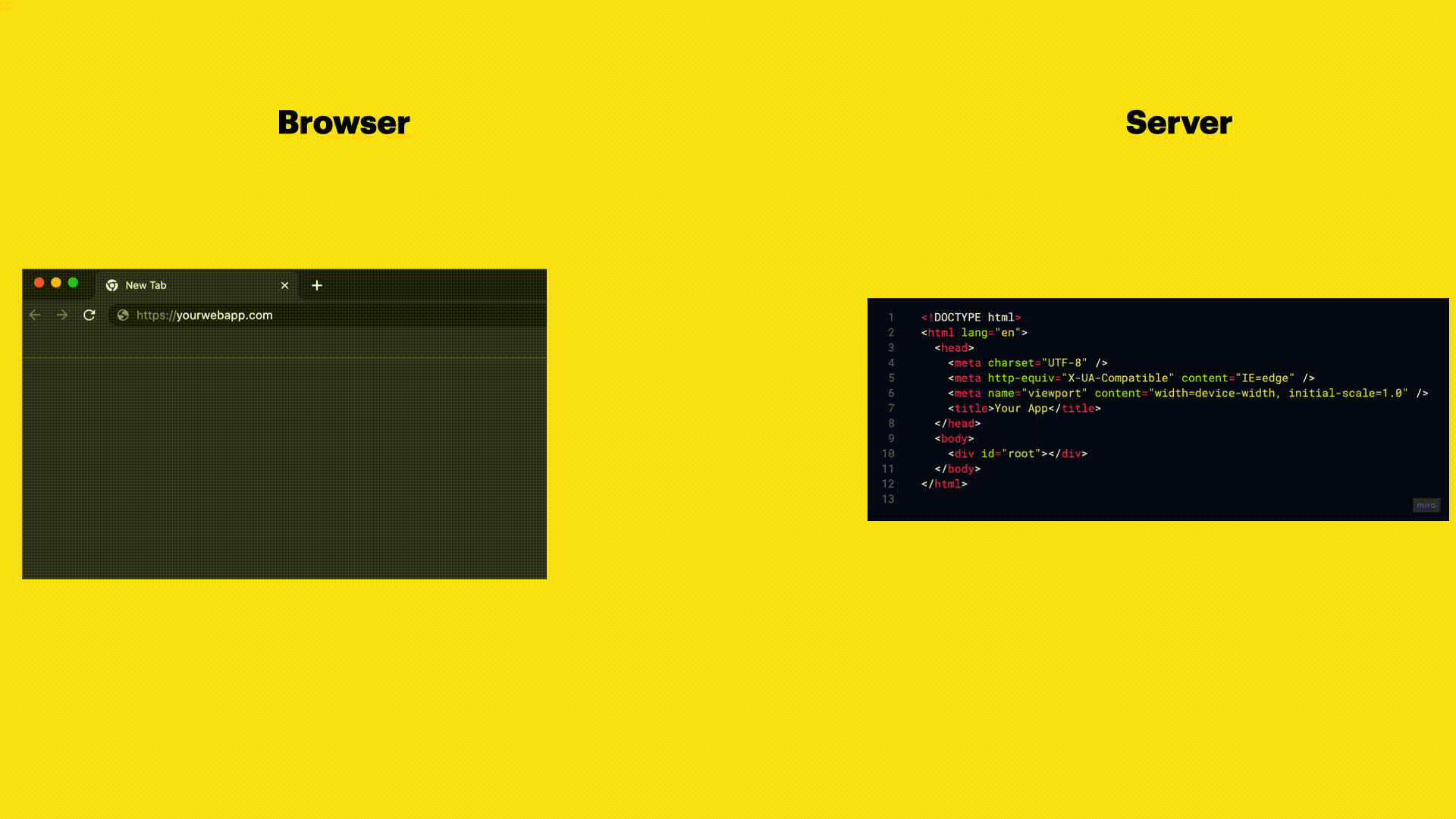

Consider we have HTML with an empty div tag and bundled js on the server. CSR rendering looks like this:

animation

The HTML consists of just a single root div tag and all the other things like displaying and updating the DOM are handled by JS.

🚀 Bundles and Performance

If we think about the performance, we first see that as the complexity of the page increase, the complexity and size of JS will increase as well and the time to get it from the server will increase. That will cause a delay for the FCP and TTI of the page.

⚖️ Pros and Cons

Pros: ✅

CSR provides a way to have SPA that supports pages to navigate without refreshing. This was a big deal for a long time and now it’s possible for websites to start acting like dynamic applications.

Cons: ❌

There are a few pitfalls though:

Performance. As the complexity of the page increase we have to wait more for JS to see the FCP.
SEO. Just like user visitors, bots make requests to view the page. This is well known process as crawling. During the first stage Googlebots crawling the source code of your page and indexes all the visible (non javascript) content. But we have nothing visible until the JS is executed to build the dom. During this rendering phase he will come again( sometimes that time goes to months) and now getting the real content of your page available for crawling and eventually adding it to the index.

Since performance issues are caused by the Javascript bundle size there are some approaches that improve the performance of CSR.

Lazy-Loading. With lazy loading, we can avoid loading non-critical resources. This approach will reduce the initial page load time.
Agressive Code Splitting.It helps us to create multiple bundles that can be loaded dynamically during runtime. It also enables us to lazy load JS resources. Code splitting is supported by bundlers like Turbopack or Webpack.
Caching with service workers. It can be used to cache the application shell offline and increase the performance time.

Server-Side Rendering

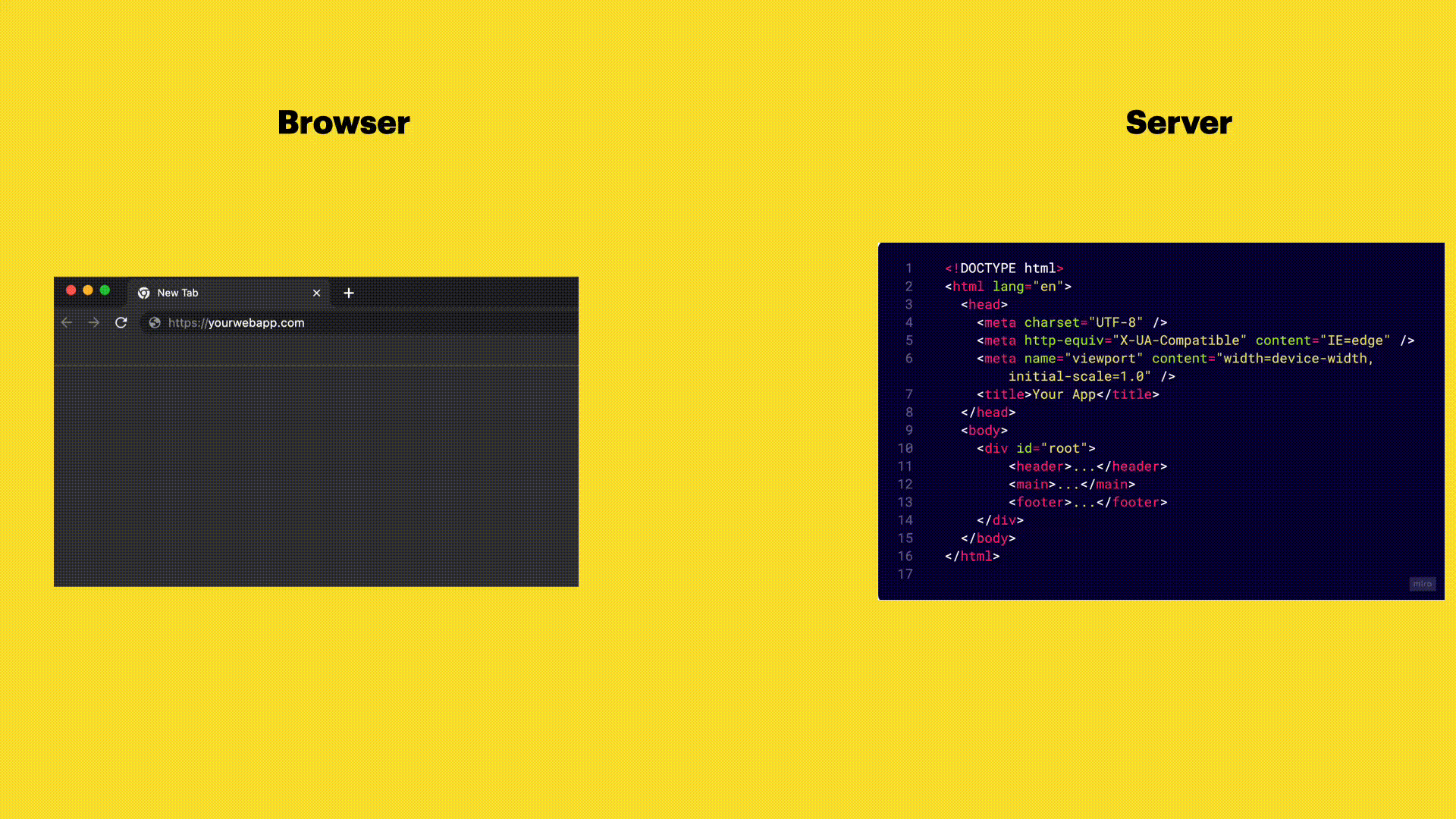

Let’s take a look what is SSR. It’s the oldest method to generate the full HTML for the page content to be rendered during the user makes a request. For this implementation we need to build the html on the server side and send it to the browser so the browser can easily build a FCP.

ssr-gif

The browser makes a request on the server and gets the HTML not just empty root but also generated with the content in it. So the browser shows the content as soon as it’s possible. Now the browser starts downloading your bundle, and the user still sees the content on the screen but it’s not interactive yet. Only after your bundle is downloaded, it attach event listeners to your HTML and becomes interactive. This process we call hydration or rehydration.

⚖️ Pros and Cons

Pros: ✅

Less Javascript enables the browser for quicker FCP and TTI.

Since we are avoiding sending lots of Javascript to the Client FCP and users are just waiting for TTI. When we have lots of UI elements on the page SSR has way less JS than CSR so the time to get the scripts is lesser even if sometimes we have FP=FCP=TTI.

SEO . Search engine bots are getting the content easily on the first stage so they now can index the page. So we now that we are getting quite good SEO on the page.

Cons: ❌

Sometimes we may have a slow TTFB. That would be a scenario when the user has a Slow network or the Server code is not optimized.

Since all our code is not available on the client side then the frequent calls to the server cause full page reloads and sometimes this will increase the time between interactions. Thus SPA is not possible with SSR.

Let’s create simple React SSR app with Express.

Step: 1

Create React application

bash

npx create-react-app ssr-react

Step: 2

Remove extra files in src folder and just left App.js and index.js.

Step: 3

Let’s write component : counter with increase and decrease methods.

src/App.js


import React, { useState } from 'react';

const App = ({ initialValue }) => {
	const [count, setCount] = useState(initialValue);
	if (typeof window === 'undefined') return <></>;
	return (
	  <>
		<div className="App">
			<button onClick={() => setCount(count + 1)}>Increase</button>
			<div style={{ margin: "20px" }}>{count}</div>
			<button onClick={() => setCount(count - 1)}>Decrease</button>
		</div>
	  </>
	);
};

export default App;

Step: 4

Now we want to render it server side. First we need a server so create a new folder server and add the Server.js file into it. I will use express to create a server, let’s install it first.

bash

npm i express --save

Create a express server and listen it on port 3000.

server/server.js

import express from 'express';
const app = express();

app.listen(3000, function () {
  console.log('server running on 3000');
});

Step: 5

No we have a server. What we need is to get the builded html file. We will render the App component and pass it to the response. We need to serve out statice files as well.

server/server.js

import express from 'express';
import fs from 'fs';
import path from 'path';
import App from '../src/App';
import React from 'react';
import ReactDOMServer from 'react-dom/server';
const app = express();

app.get("/page", async (req, res) => {
  fs.readFile(path.resolve("./build/index.html"), "utf-8", (err, data) => {

	if (err) {
	  return res.status(500).send("Error happened");
	}

	const html = `<div id="root">${ReactDOMServer.renderToString(
		<App />
	)}</div>`;

	return res.send(data.replace('<div id="root"></div>', html));
  });
});

app.use(express.static(path.resolve(\_\_dirname, "..", "build")));

app.listen(3000, function () {
console.log("server running on 3000");
});

Step:6

So we read index.html file from the built folder. Then we need to render the App component on the server side, for this, we use ReactDOMServer which provides the method to render the component on the server side. Replace the empty div root with our rendered component da send it to the client. So we are using JSX on the server side and need support for it, so we need to add Babel for it.

npm i @babel/preset-env @babel/preset-react @babel/register ignore-styles --save-dev

Step: 7

Add index.js file side by server.js and require these things into it and require server.js on bottom of them.

server/index.js

require("ignore-styles");

require("@babel/register")({
    ignore: [/(node_module)/],
    presets: ["@babel/preset-env", "@babel/preset-react"],
});

require("./server");

Step: 8

On the frontend side, we don’t need ReactDOM.render anymore since we have already rendered the DOM from the server and now we need to hydrate it to register event listeners and etc. Now index.js on the src folder looks like this.

src/index.js

import React, { StrictMode } from "react";
import { hydrateRoot } from "react-dom/client";
import App from "./App";

hydrateRoot(document.getElementById("root"), <App initialValue={10} />);

Step: 9

Add the final run command in package.json file:

    "ssr": "node server/index.js",

The first build our frontend by the command npm run build and then start our server by the command npm run ssr.

Source Code

Thanks for your attention 🚀🖌️!
